Nexus AI Server
1 / 5
| Model | SR650 V2 server |
| Processor | Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP |
| Memory | 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem) |

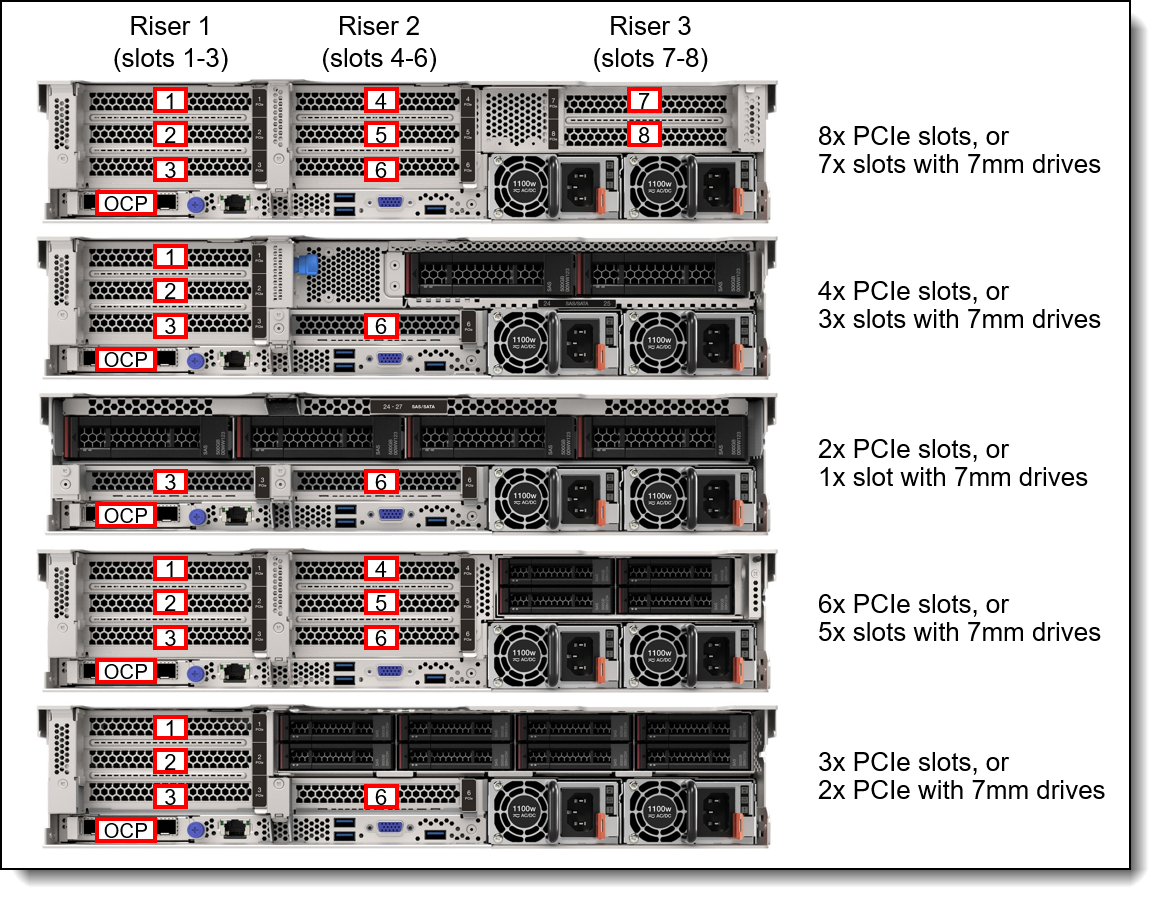

| Expansion Slots | Up to 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot |
| GPUs | Up to 8x single-width GPUs or 3x double-width GPUs |
| Network Interface | LOM adapter installed in the OCP 3.0 slot; PCIe adapters |
| Power Supply | Dual redundant power supplies (up to 1800W Platinum) |
| Drive Bays | Up to 20x 3.5-inch or 40x 2.5-inch drives; Up to 32x NVMe drives supported with NVMe switch adapters; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1) |
| OS Support | Microsoft, SUSE, Red Hat, VMware. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
