Nexus AI Server
1 / 5

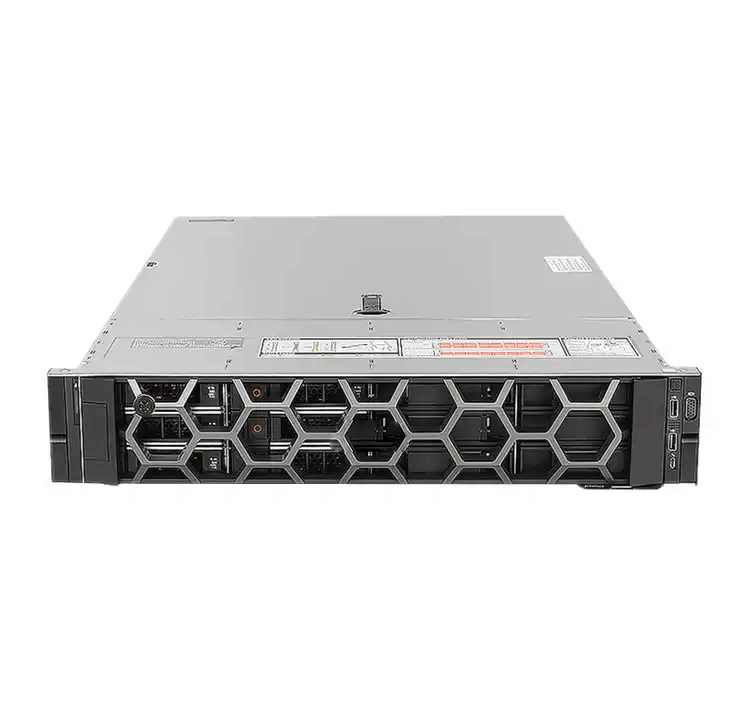

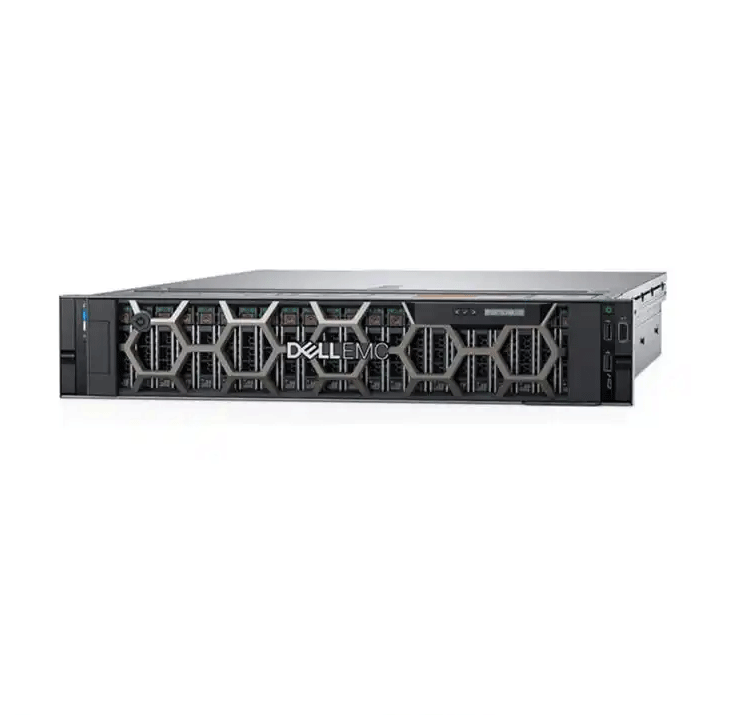

| Model | PowerEdge R740xd |
| Processor | Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max. Up to 12 NVDIMM, 192 GB Max. Supports registered ECC DDR4 DIMMs only. |
| Drive Bays |
Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB
Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB
Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD
|
| Storage Controllers |
Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140
Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB
External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID)
External-12Gbps SAS HBA (non-RAID): Internal- HBA330 (non-RAID)
|
| Embedded NIC | 2 x 1 GbE LOM |
| I/O & Ports |
Network daughter card options: 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE

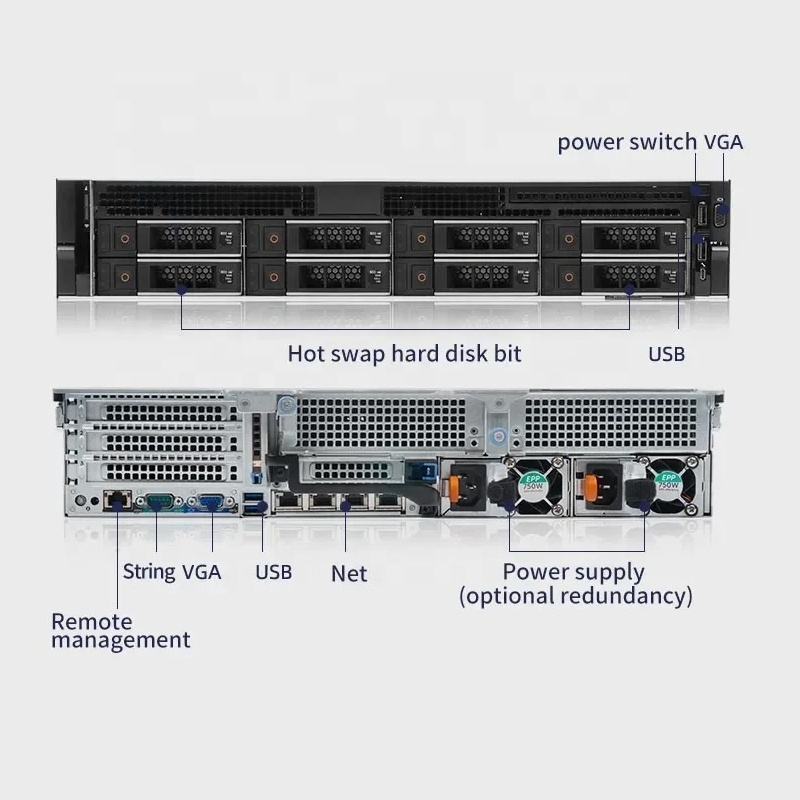

Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB
Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port
Video card: VGA
Riser options: Up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots
|
| Accelerator Options | GPU and FPGA options are available only on 24 x 2.5” drive chassis. (Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria® 10 GX) |
| Power Supply | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W |
| Security | TPM 1.2/2.0 optional, Secure Boot, System Lockdown, Secure erase |
| Warranty | 3 years |
