Nexus AI Server
1 / 5
| CPU | Supports 2 x 5th/4th Gen Intel® Xeon® Scalable processors, TDP 350W |
| GPU | Supports up to 8/10 x dual-width GPUs |

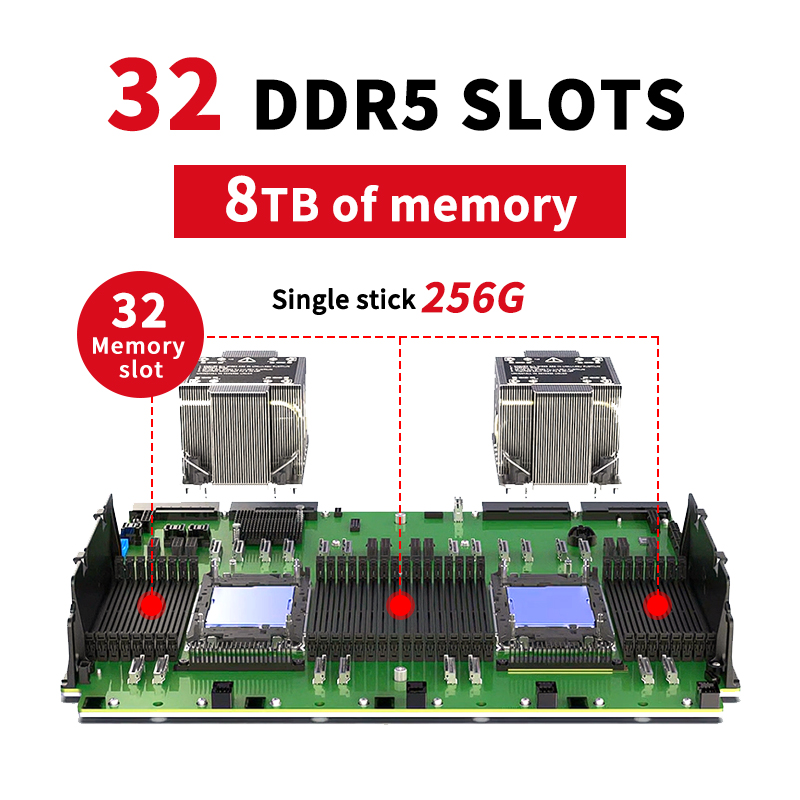

| Memory | Supports 32 x DDR5 DIMMs, up to 5600MHz; Supports RDIMM, 3DS RDIMM, and up to 8TB of memory |
| Storage Controller | Integrated 6Gb/s onboard SATA, optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID card; Supports VMD and VROC |
| PCIe Extension | Supports up to 12 x PCIe standard slots; Supports 8 x GPUs+1 x PCIe 5.0 x16+2 x PCIe 5.0 x8; Supports 8 x GPUs+4 x PCIe 5.0 x8; Optional support for 1 x built-in RAID or SAS HBA standard card (PCIe 4.0x8) |
| Local Storage | Supports 12 x 3.5 "/2.5" hard drives, optional 8 x 3.5 "/2.5" hard drives; Supports up to 4 x U.2 NVMe SSDs; Supports 2 x M.2 (SATA 3.0/PCIe 4.0 x4, 2280&22110) |
| Network | 1 x 1Gb RJ45 dedicated management network port; Supports 1 x OCP3.0 network card, optional PCIe 5.0 x8 or x16, supports NCSI; Optional 4x1GbE/2x10Gb SFP+/4x10Gb SFP+/2x25Gb SFP28 |
| I/O Ports | Front: 2 x USB 3.0, 1 x VGA; Rear: 1 x serial, 2 x USB 3.0, 1 x VGA, 1 x RJ45 management port |
| Fan | 8 x 8056 high-speed fans, hot swappable, N+1 redundant; Supports optional configuration of rear fan module |
| Power Supply | 4 x CRPS power modules, hot swapping, 2+2/3/1/1+1 redundant mode; Optional 1600W/2000W/2400W/2700W Platinum grade |
| Management | Integrated BMC management chip AST2600, supporting IPMI2.0, Redfish, SOL, KVM, virtual media, etc. |
| Safety Functions | Optional TPM/TCM security module, intrusion detection, chassis locking; Support BIOS/BMC dual flash redundant design |
| Chassis Size | 4U standard rackmount; 3.5" HDD size: 448mm(W) x 175mm(H) x 822mm(D) |
| Temperature | Operating: 5ºC - 35ºC; Storage: -40ºC - 65ºC |
| Humidity | Operating: 8% to 90%; Storage: 5% to 95% (non-condensing) |
| OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu, and Debian |
