Nexus AI Server
1 / 5
| Model | R2225V2 |
| CPU | Supports 2 AMD EPYC 7002 7003 series processors |
| Memory | 32 DDR4 memory slots, 16 channels in total, up to 3200MHz, supports RDIMM/LRDIMM, supports up to 8TB memory |
| Storage controllers | Integrated 6Gb/s SATA controller, supports up to 16 SATA interfaces, optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller |
| GPU | Supports up to 2 full-height full-length double-width GPUs or 6 full-height full-length single-width GPUs (x16) or 8 half-height half-length single-width GPUs |
| PCIe | Up to 10 PCIe4.0 expansion slots. Supports up to 6 full-height full-length PCIe4.0 x16 expansion slots |
| Power Supply | 1 or 2 power modules, support 1+1 redundancy, support hot swap. Optional 220V AC/240V DC/336V DC/-48V DC input. Optional 500W/800W/1300W/1600W/2000W Platinum power module. Integrated BMC |
| Management Features | Management chip, support IPMI2.0, Redfish, SOL, KVM, virtual media and other functions. Provide 1 1Gbps RJ45 IPMI dedicated management port |
| Security functions | Optional TPM/TCM security module, chassis cover intrusion detection, locked chassis cover |

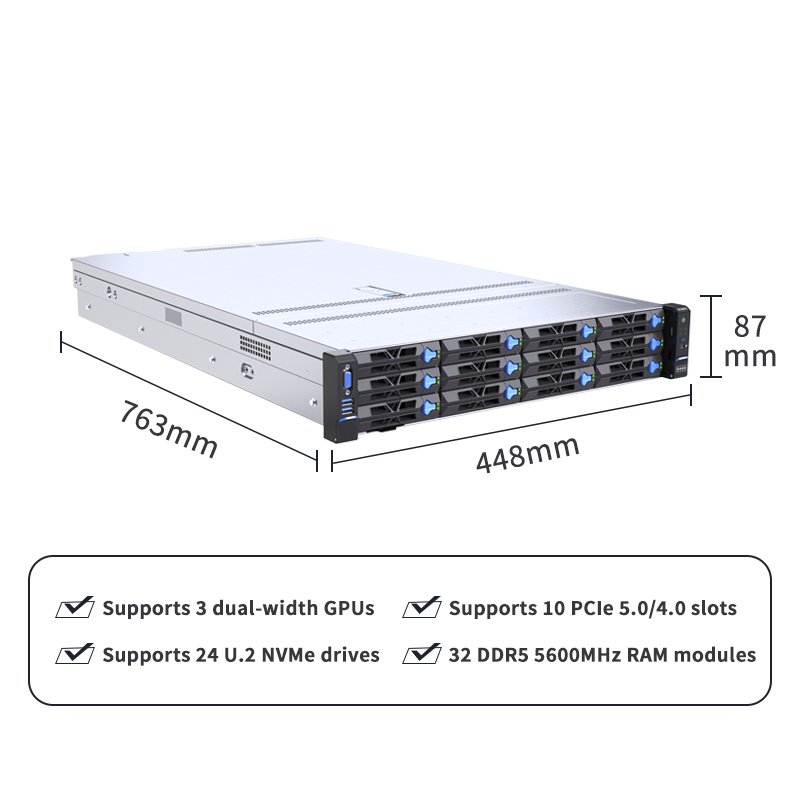

| Dimensions | 2U rack-mount chassis, width 448mm × height 87mm × depth 763mm (including mounting ears 808mm) |
| Warranty | 3 YEARS |
