Nexus AI Server
1 / 5

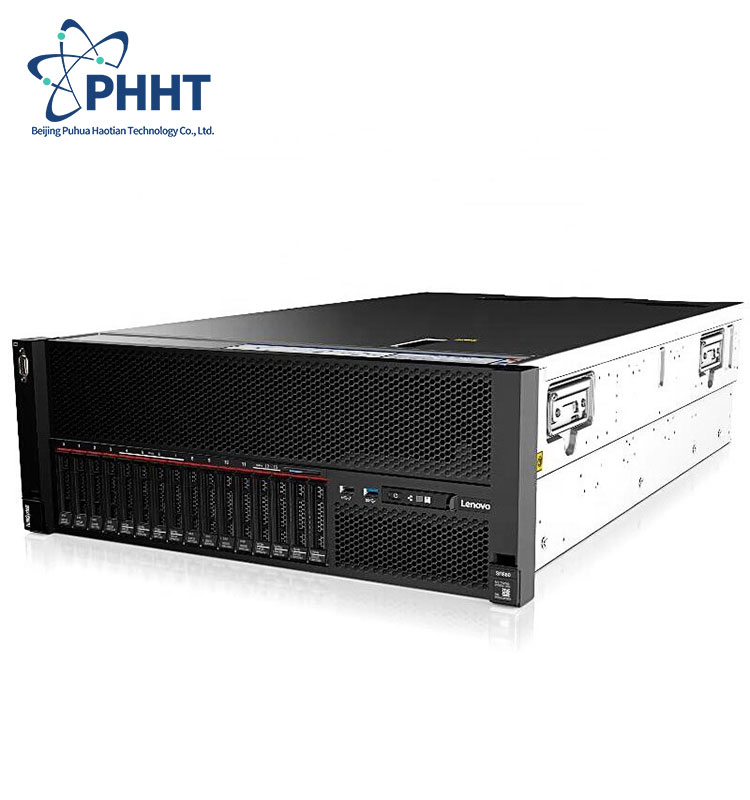

| Model | Lenovo SR860 V3 Rack Server |
| Processor | Two or four 4th Gen Intel® Xeon® Scalable processors, up to 350W; Mesh topology with 3x UPI links; With Up to 4x QAT, DLB, IAA and DSA Accelerators |
| Memory | Up to 16TB of TruDDR5 memory in 64x slots; Memory speeds up to 4800MHz |
| Internal Storage | Up to 48x 2.5" drives; Supports up to 24x direct connection NVMe drives; 2x 7mm or 2x M.2 drives for boot |
| Expansion | Up to 16x (12x Gen5 + 4x Gen4) or up to 18x Gen4 or 4x Gen4 PCIe expansion slots; Front: VGA, 1x USB 3.1, 1x USB 2.0; Rear: 2x USB 3.1, Serial port, VGA port, 1GbE dedicated management port |
| Network Interface | 2 Dedicated OCP 3.0 slot supporting 1GbE, 10GbE, 25GbE or 100GbE |
| GPU Support | Up to 4x double-width 350W GPUs or 8x single-width 75W GPUs |
| RAID Support | Support for ThinkSystem PCIe RAID/HBA cards |
| Management | Lenovo XClarity Controller; Redfish support |
| Power Supply | Up to 4x Platinum or Titanium hot-swap power supplies; N+N redundancy supported |
| Warranty | 3 years |
