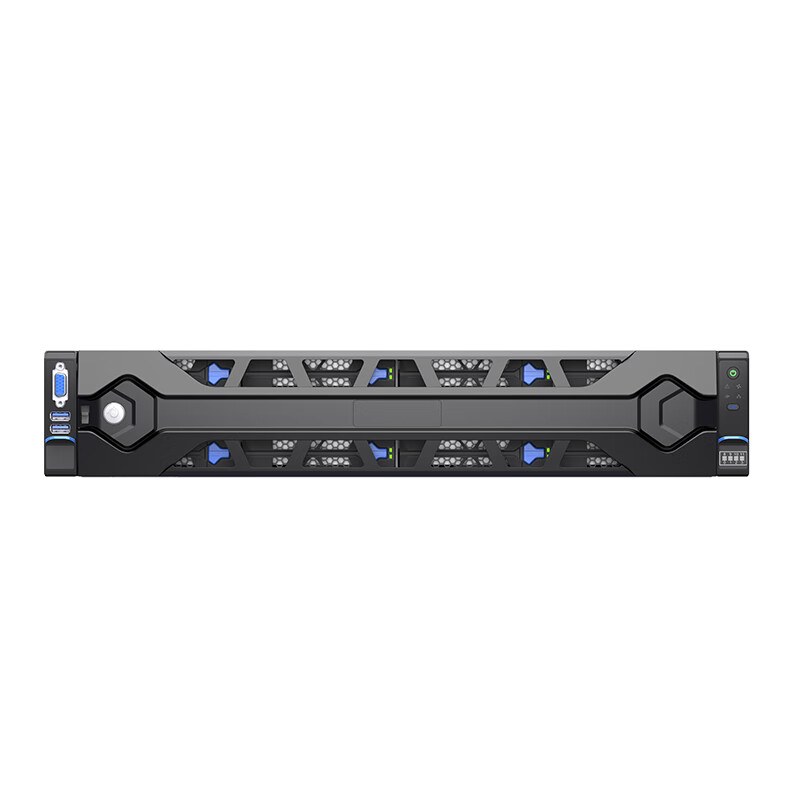

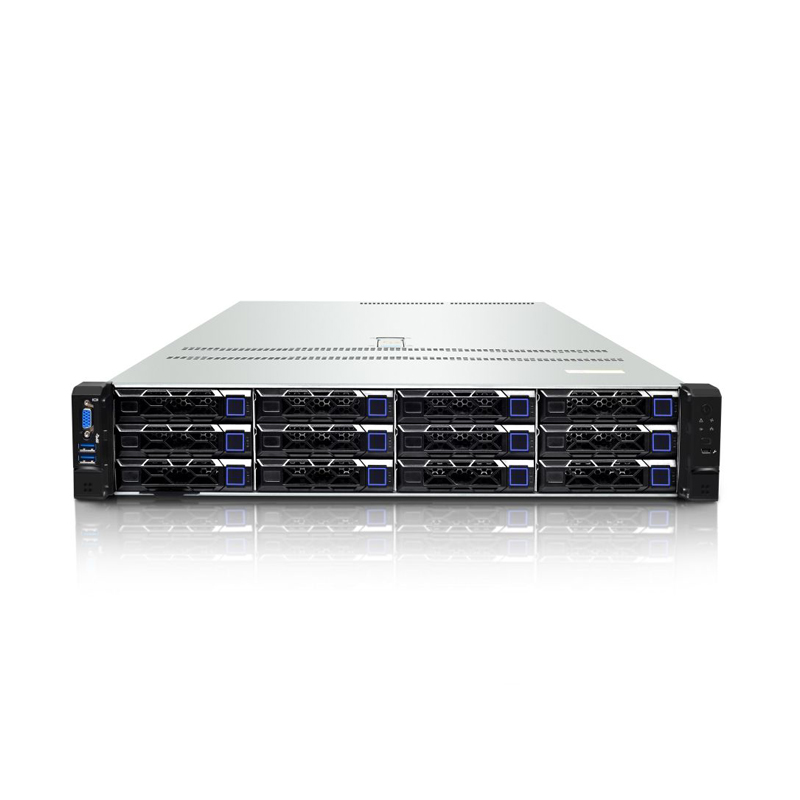

Nexus AI Server
1 / 5
| Model | R2225V2 |
| CPU | Supports 2 AMD EPYC 7002 7003 series processors |
| Memory | 32 DDR4 memory slots, 16 channels in total, up to 3200MHz, supports RDIMM/LRDIMM, supports up to 8TB memory |
| Storage Controllers | Integrated 6Gb/s SATA controller, supports up to 16 SATA interfaces, optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller |
| GPU | Supports up to 2 full-height full-length double-width GPUs or 6 full-height full-length single-width GPUs (x16) or 8 half-height half-length single-width GPUs |
| PCIe | Up to 10 PCIe4.0 expansion slots; Supports up to 6 full-height full-length PCIe4.0 x16 expansion slots |
| Power Supply | 1 or 2 power modules, support 1+1 redundancy, hot swap; Optional 220V AC/240V DC/336V DC/-48V DC input; Optional 500W-2000W Platinum power module |
| Management | Integrated BMC management chip, support IPMI2.0, Redfish, SOL, KVM, virtual media; 1x 1Gbps RJ45 dedicated port |
| Security | Optional TPM/TCM security module, chassis cover intrusion detection, locked chassis cover |

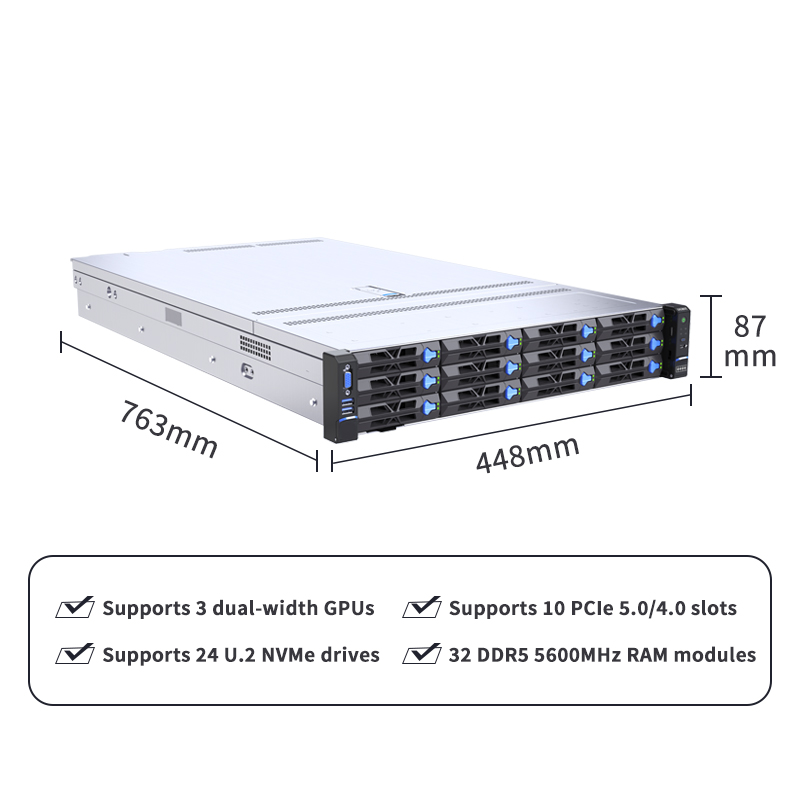

| Dimensions | 2U rack-mount: width 448mm × height 87mm × depth 763mm (incl. ears 808mm) |
| Warranty | 3 YEARS |
