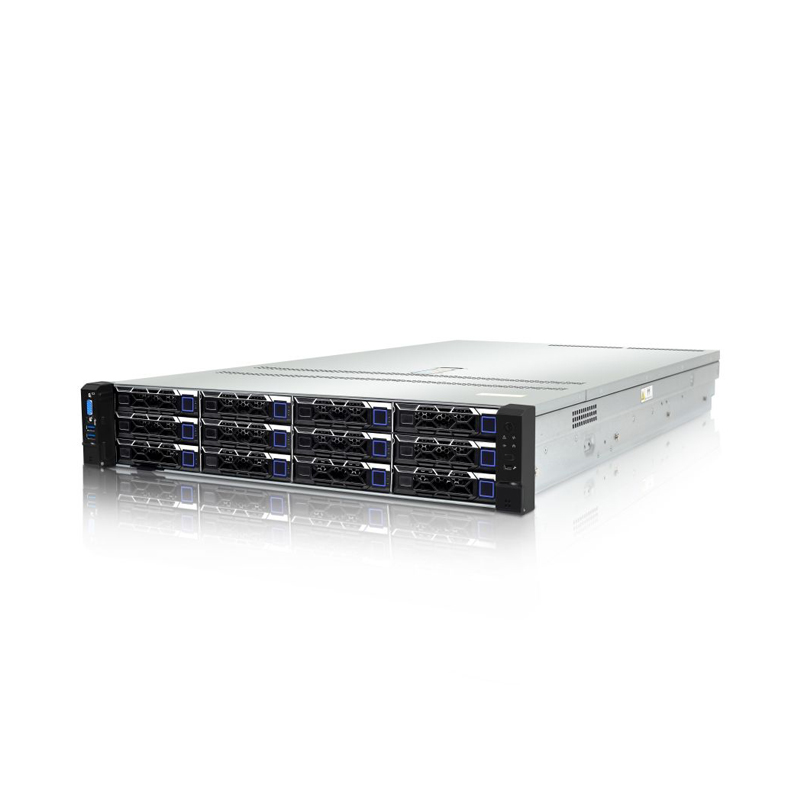

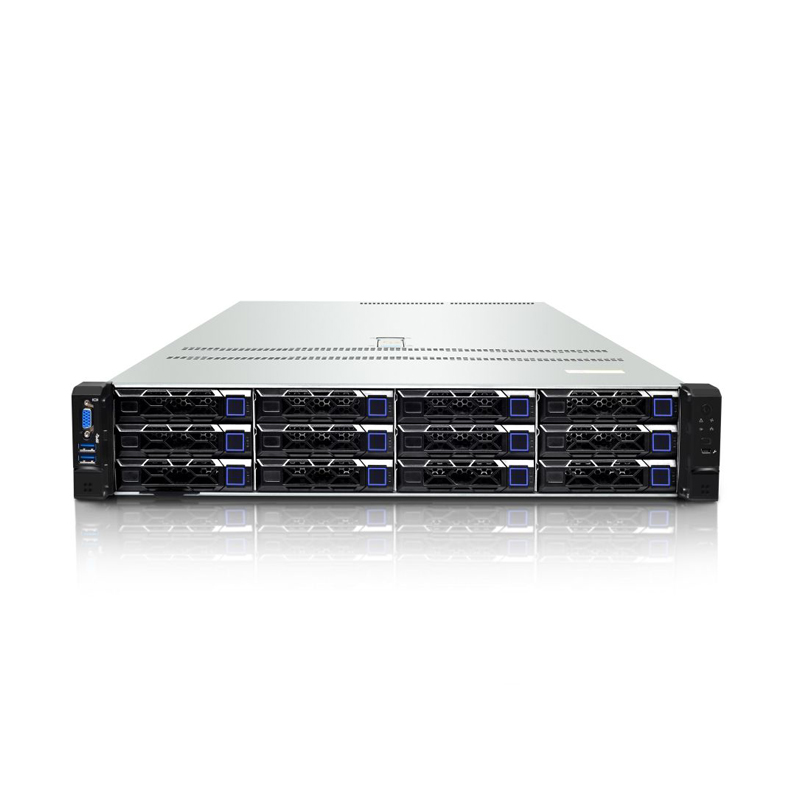

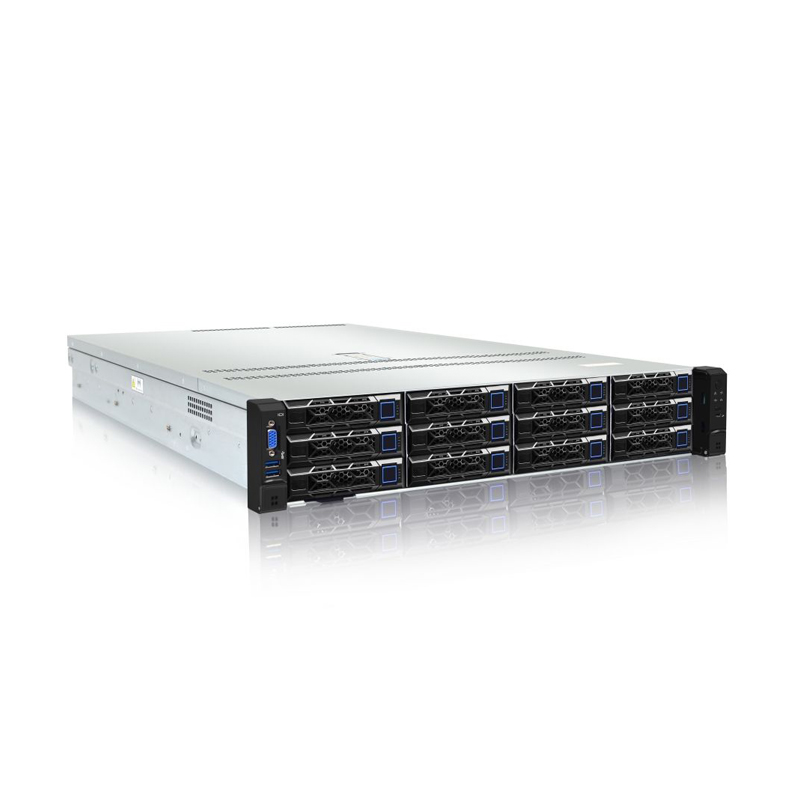

Nexus AI Server
1 / 5
| Model | R2220 V3 |
| CPU | Intel® C741A |
| Processor | Up to 2 lntel® Xeon® 4th generation Scalable processors 4400/5400/6400/8400 (SPR), up to TDP 350W |
| Memory | 32 DDR5 DIMM slots, 16 memory channels in total. Support 32 DDR5 RDIMMs, max 4800MT/s. Support Intel® Optane™ Persistent Memory 300 Series. Max support 12.0TB system memory. |
| Storage | Front: 12x 3.5" (optional 8 NVMe) or 25x 2.5". Rear: 4x 3.5" + 2x 2.5" or 4x 2.5". Internal: 2x M.2 (PCIe4.0 x4) and up to 24 U.2 NVMe SSDs. |
| Storage Controllers | Onboard 6Gb/s SATA (RAID 0/1/10/5). Optional 12Gb/s SAS HBA and SAS RAID card. |
| GPU | Supports up to 3 double-width GPUs or 6 single-width GPUs. |
| PCIe | Up to 10 PCIe expansion slots. |
| Power Supply | 1 or 2 modules (1+1 redundancy), hot-swap. 800W/1300W/1600W/2000W platinum modules. |
| Interface | Front: 1 VGA, 2 USB3.0, 1 LCD Mini USB. Rear: 1 VGA, 2 USB3.0, 1 RJ45 Mgmt, 1 RS232 COM. |
| System Fan | 4 hot-swappable modules, N+1 redundancy, intelligent speed regulation. |
| Temperature | Standard: 5°C to 35°C. Extended: 5°C to 40°C. Storage: -40°C to 65°C. |

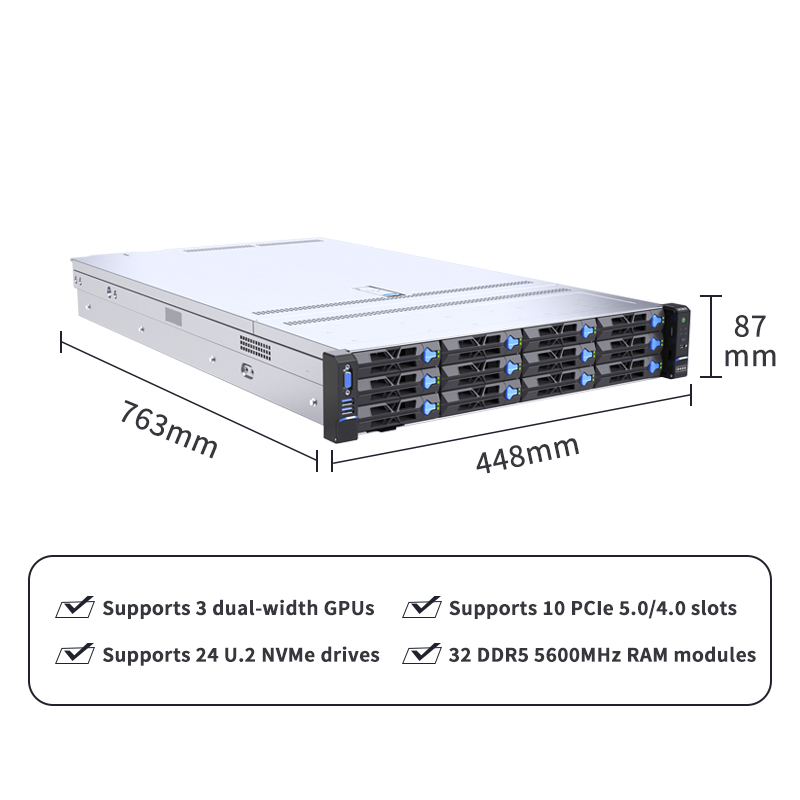

| Dimensions | 2U Rack; 447mm (W) x 87mm (H) x 783mm (D). |
| Warranty | 3 YEARS |
