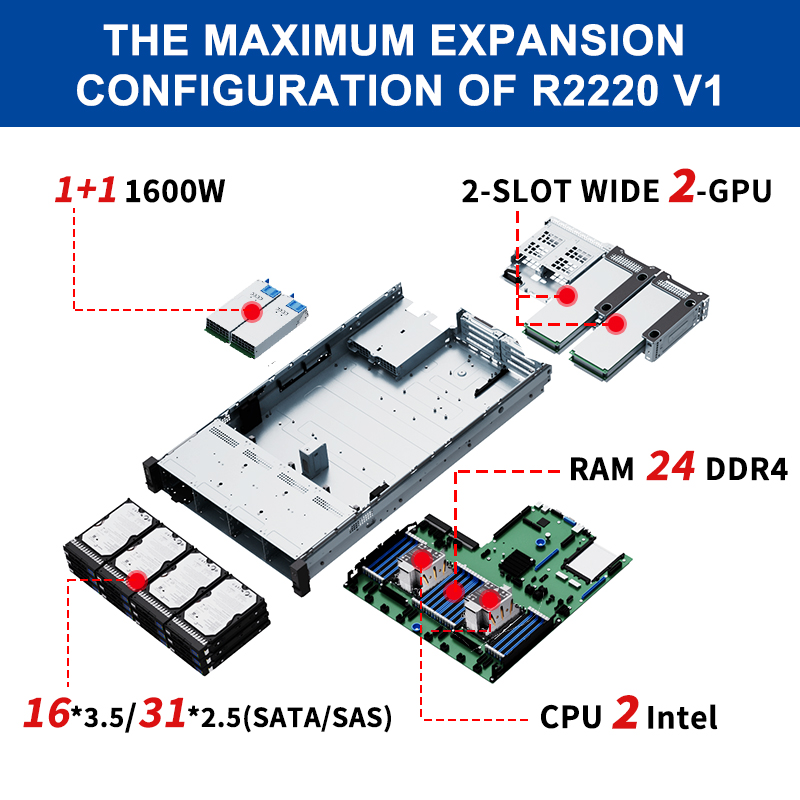

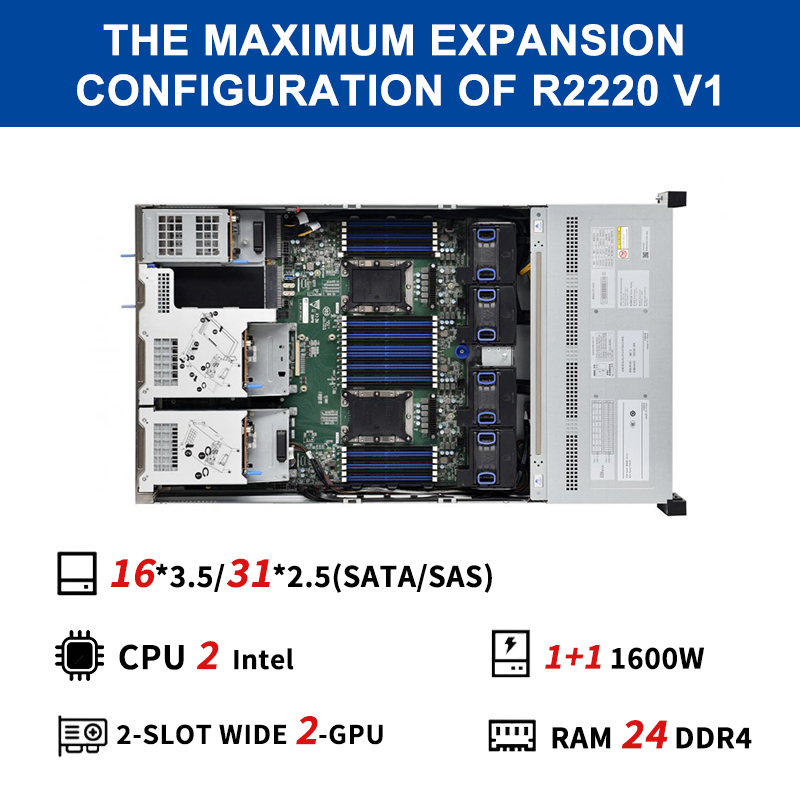

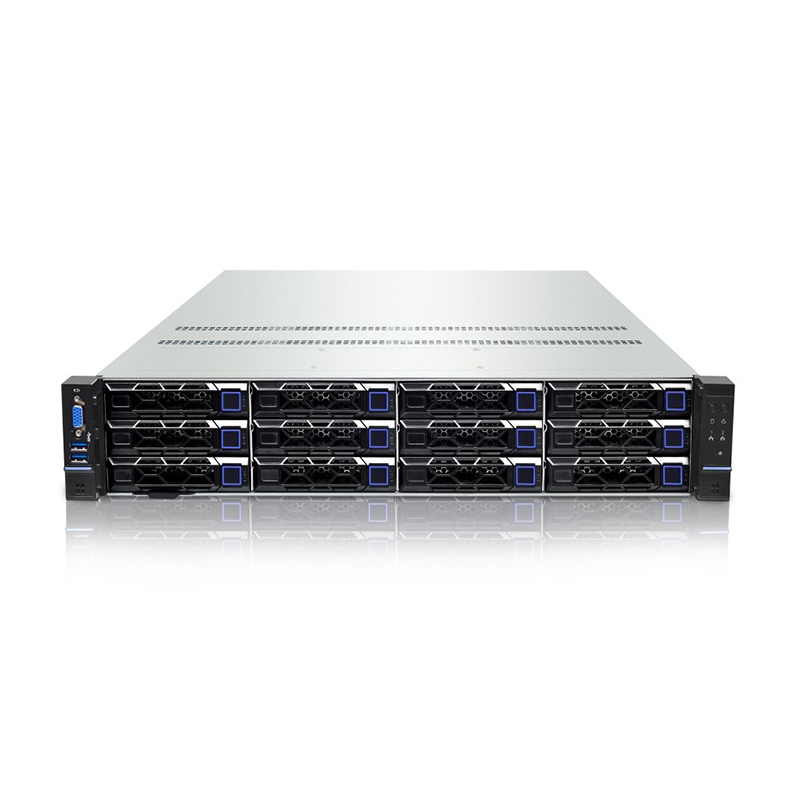

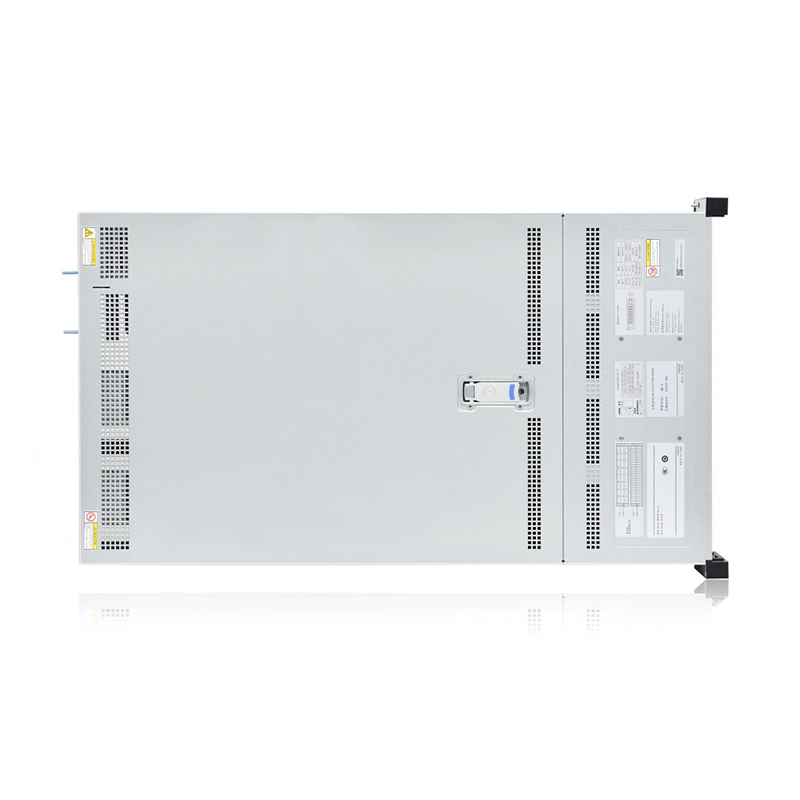

| Model | R2220v1 |
| Processor |
1/2 1st Generation Intel® Xeon® Scalable Processors, 3100/4100/5100/6100/8100 Series, TDP 205W 1/2 2nd Generation Intel® Xeon® Scalable Processors, 3200/4200/5200/6200/8200 Series, TDP 205W |
| Memory |
24 DDR4 DIMM slots, 12 memory channels Supports 2 DDR4 RDIMMs/LRDIMMs/NVDIMMs, maximum speed 2933MT/s Supports 12 Intel DCPMMs, maximum speed 2666MT/s Single capacity: 8GB, 16GB, 32GB, 64GB, 128GB, 256GB, 512GB Supports up to 9.0TB system memory (requires specific CPU models and Intel DCPMM) |
| Storage Controller |
Integrated 6Gb/s SATA controller; Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller, supports hot-swap hard disk configurations: - Up to 16 x 3.5-inch + 2 x 2.5-inch SAS/SATA/SSD hard disks - Up to 31 x 2.5-inch SAS/SATA/SSD hard disks - Up to 16 x 2.5-inch NVMe SSD hard disks Supports built-in 1 x PCIe M.2 (80/110mm), 2 x SATA DOM |
| Network | Integrated 2 x 1GbE, optional 2x1GbE / 4x1GbE / 2x10GbE / 4x10GbE / 2x25GbE / 2x40GbE network daughter cards and various standard PCIe network cards |
| GPU | Supports 2 full-height, full-length, double-width GPUs |
| Ports |
Front: 1 x D-Sub VGA, 2 x USB 3.0, 1 x LCD Mini USB Rear: 1 x D-Sub VGA, 2 x USB 3.0, 1 x RJ45 management network port, 2 x RJ45 Ethernet ports |
| Power Supply |
1 or 2 power modules, support 1+1 redundancy and hot swap Optional: 220V AC / 240V DC / 336V DC / -48V DC input Options: 550W / 800W / 1300W / 1600W |
| Dimensions | Rack-mounted 2U, Width 447mm x Height 87mm x Depth 808mm (788mm without mounting ears) |
| Warranty | 3 Years |
