Nexus AI Server
1 / 5

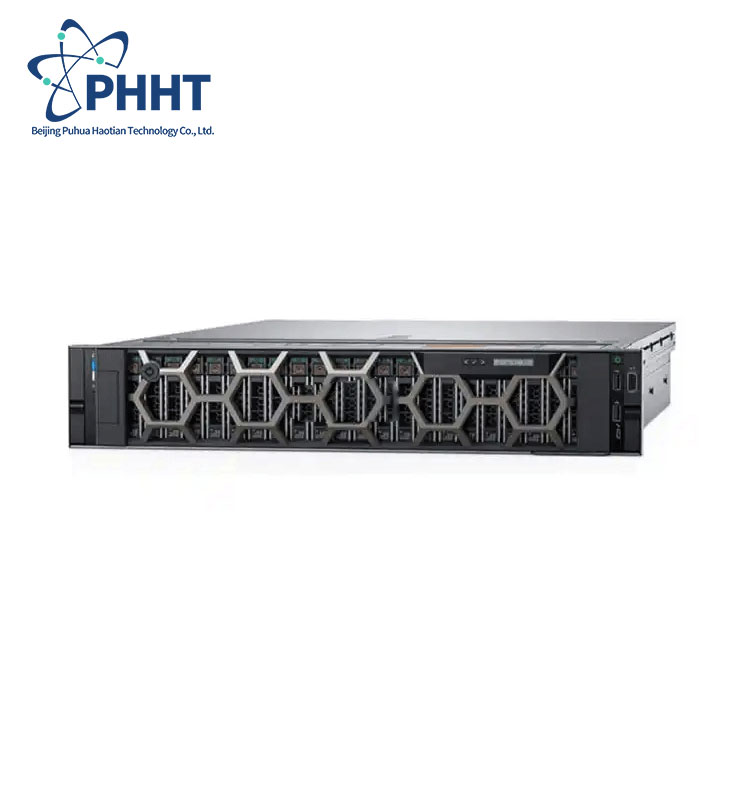

| Model | Poweredge R740xd |
| Processor | Up to two Intel® Xeon® Scalable processors, up to 28 cores per processor |
| Memory | 24 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666MT/s, 3TB max Up to 12 NVDIMM, 192 GB Max Supports registered ECC DDR4 DIMMs only |
| Drive Bays |
Front bays: Up to 24 x 2.5” SAS/SATA (HDD/SSD), NVMe SSD max 153TB or up to 12 x 3.5” SAS/SATA HDD max 144TB Mid bay: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD max 25TB or up to 4 x 3.5”, max 48TB Rear bays: Up to 4 x 2.5”, max 25TB SAS/SATA (HDD/SSD), NVMe SSD or up to 2 x 3.5” max 24TB SAS/SATA HDD |
| Storage controllers |
Internal controllers: PERC H730P, H740P, Software RAID (SWRAID) S140 Boot Optimized Storage Subsystem: HWRAID 2 x M.2 SSDs 120GB or 240 GB External PERC (RAID): H840 12Gbps SAS HBAs (non-RAID) |
| Embedded NIC | 2 x 1 GbE LOM |

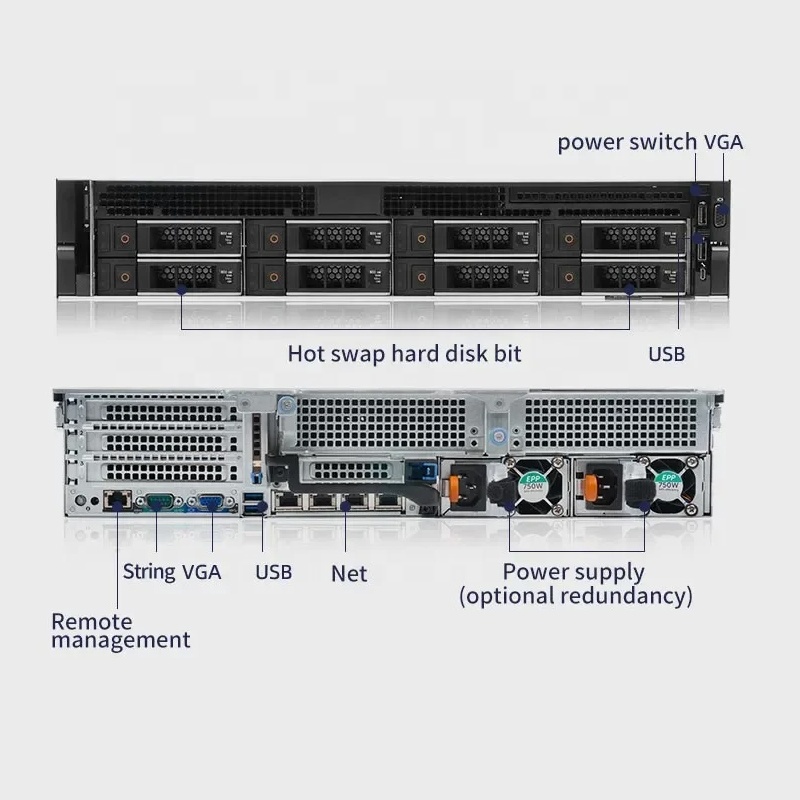

| I/O & Ports |
Network daughter card options: 4 x 1GE or 2 x 10GE + 2 x 1GE or 4 x 10GE or 2 x 25GE Front ports: VGA, 2 x USB 2.0, dedicated IDRAC Direct Micro-USB Rear ports: VGA, Serial, 2 x USB 3.0, dedicated iDRAC network port Video card: VGA Riser options with up to 8 PCIe Gen 3 slots, maximum of 4 x 16 slots |
| Accelerator options |
GPU and FPGA options available on 24 x 2.5” drive chassis. Nvidia Tesla P100, K80, K40, Grid M60, M10, P4, Quadro P4000, NVIDIA V100 or Intel Arria® 10 GX |
| Power Supply | Titanium 750W, Platinum 495W, 750W, 1100W, 1600W, and 2000W |
| Security | TPM 1.2/2.0 optional, Secure Boot, System Lockdown, Secure erase |
| Warranty | 3 years |
