Nexus AI Server
1 / 5

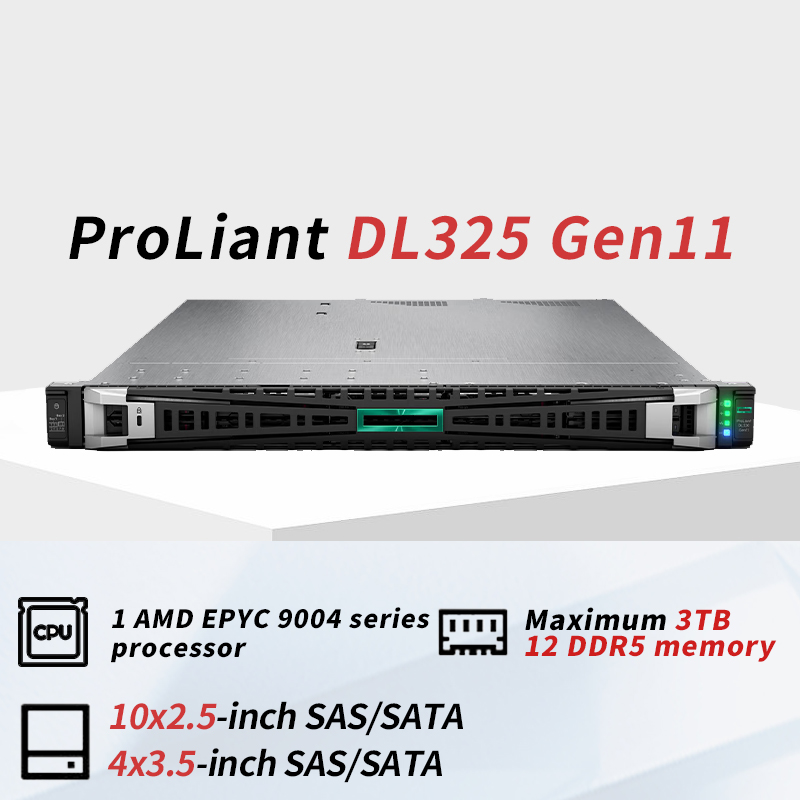

| Model | Proliant DL325 Gen11 |
| Form Factor | 1U Rack Server |
| Processors | Supports one AMD EPYC 9004 series processor, each with up to 96 cores and a maximum power of 400w |
| Memory | Supports up to 12 DDR5 DIMMs at a maximum rate of 4800MT/s, RDIMMs or LRDIMMs, and supports a maximum memory capacity of 3TB* and CXL1.1 |
| Storage | Supports up to 10 2.5-inch SATA/SAS/NVMe hard drives, Up to 4 3.5-inch SATA/SAS hard drives, Up to 20 EDSFF E3.S 1T NVMe*, Supports NS204i-u hot-swappable NVMe boot drives (does not occupy PCIe slots) |
| GPU | Up to 2 single width GPU cards or 2 double width GPU cards |
| Network | PCIe upright adapter and 1 OCP 3.0 network card |
| PCIe Expansion | Two PCIe 5.0 slots are standard |
| Power Supply | Optional up to 2200W 1+1 hot swap redundant power supply, up to 96% titanium dioxide support; supports hot-swappable redundant fans |
| Dimensions (H x W x D) | 8SFF chassis: 42.9mm (H) x 434.6mm (W) x 649.4mm (D) 4LFF chassis: 42.8mm (H) x 434.6mm (W) x 708.9mm (D) |
