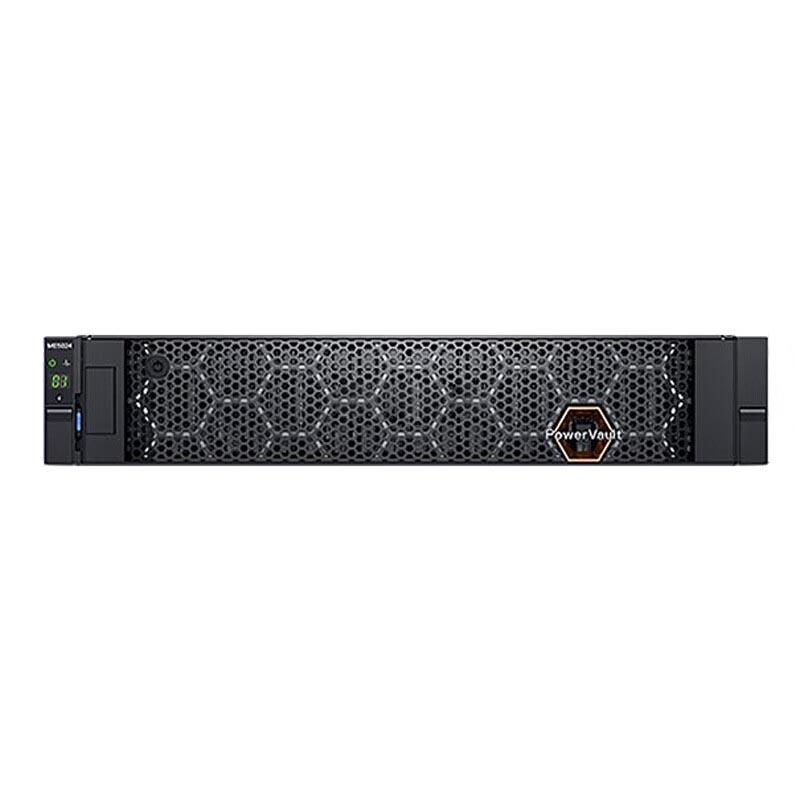

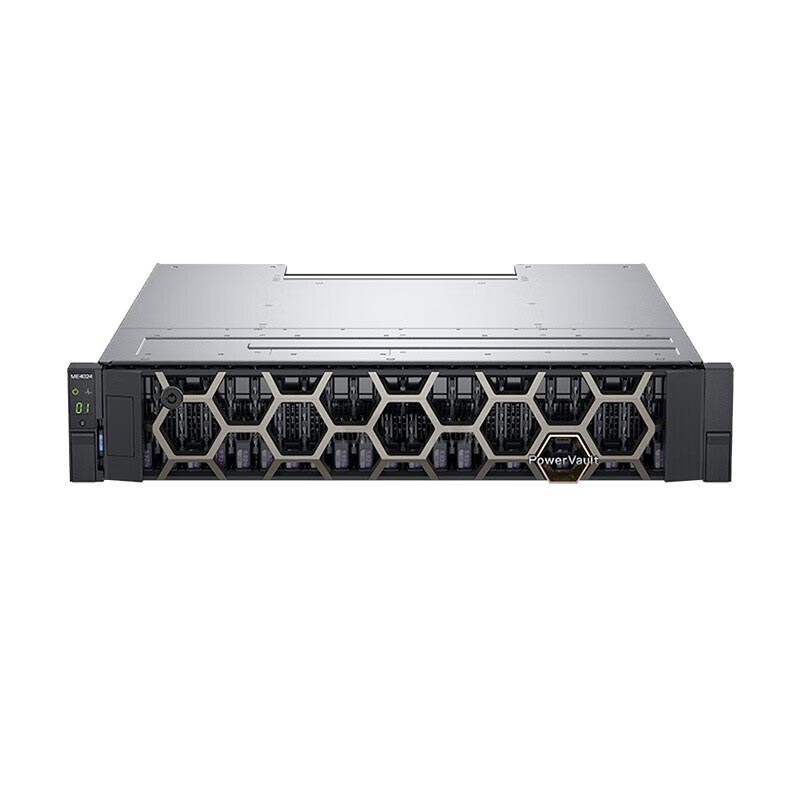

| PowerVault ME5 Specifications | |
|---|---|
| Chassis Overview | |
| Chassis format | All-in-one: dual controllers, internal drive bays, networking and with expansion options |
| Rack size | 2U or 5U |
| Controllers | 2 hot-swappable per chassis (dual-active). Single/dual controller support for 2U models; Dual controller support only for 5U model |
| Processor | Xeon Processor |
| Internal storage | ME5012: 12 x 3.5” drive bays ME5024: 24 x 2.5” drive bays ME5084: 84 x 3.5” drive bays |
| System Memory | 8GB for controller and 16GB for cache (24GB total per controller) |
| Expansion Capacity | |
| Expansion enclosures | ME412 (12 bays), ME424 (24 bays), ME484 (84 bays) - 12Gb SAS |
| Max drive count | ME5012: 264; ME5024: 276; ME5084: 336 |
| Max raw capacity | ME5012: Up to 288TB; ME5024: Up to 184TB; ME5084: Up to 2.01PB |
| Storage media | SAS and NL-SAS; NLSAS 7.2K, SAS 10K, SSD (Up to 7.68TB RI) |
| Network and I/O | |
| Host interface | FC, iSCSI (optical or BaseT), SAS |
| Max Ports | 8 x 32Gb FC, 8 x 25Gb iSCSI, or 8 x 10Gb iSCSI ports per array |
| Data Optimization | |
| RAID support | RAID 1, 5, 6, 10, or ADAPT RAID |
| Data Features | Auto-tiering (up to 3 tiers), Thin provisioning, Redirect-on-write snapshots (1024 max) |
