Nexus AI Server
1 / 5

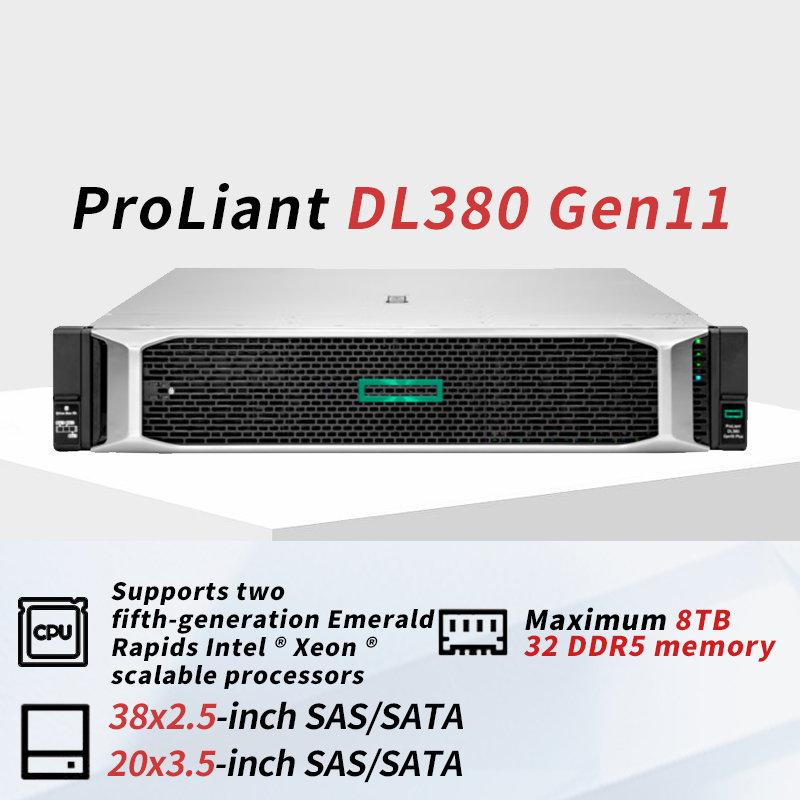

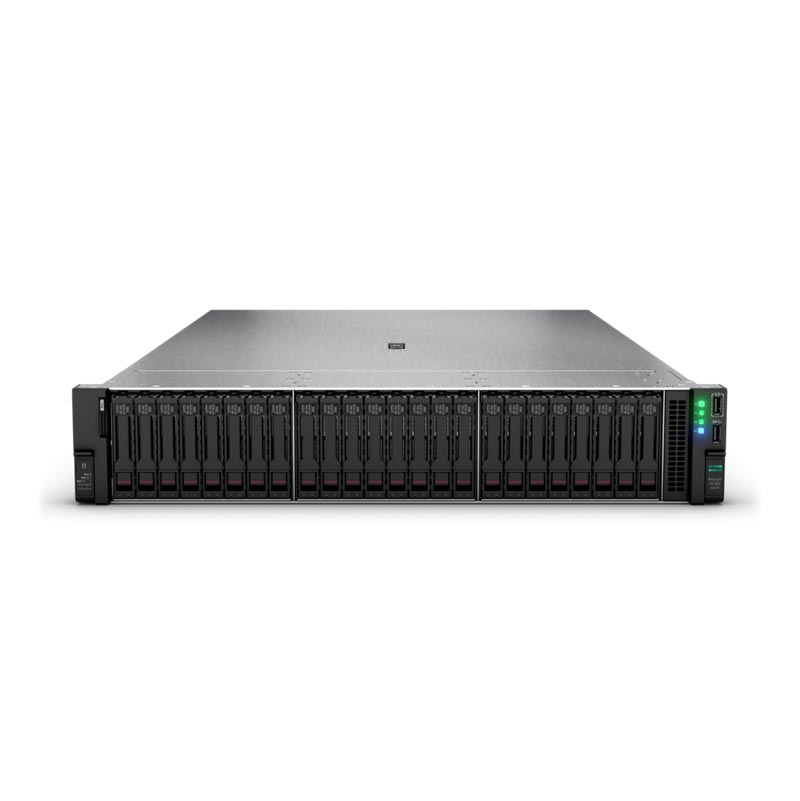

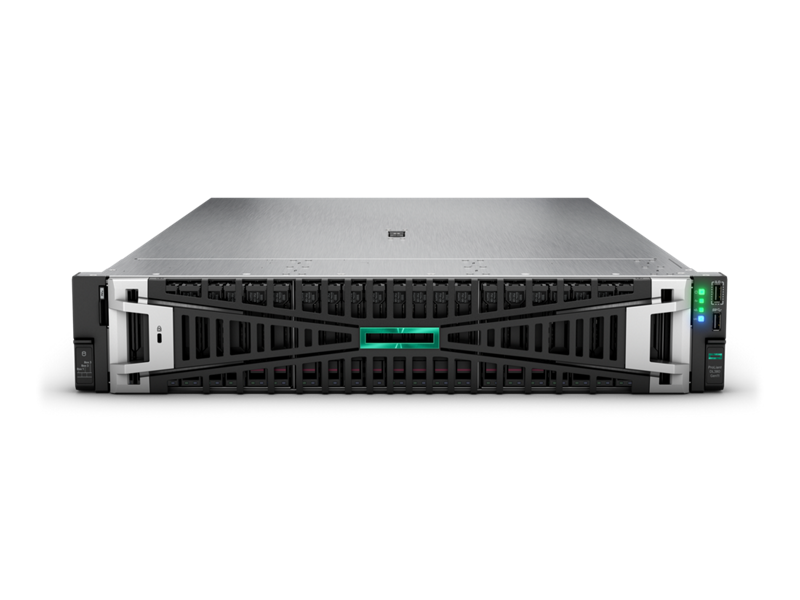

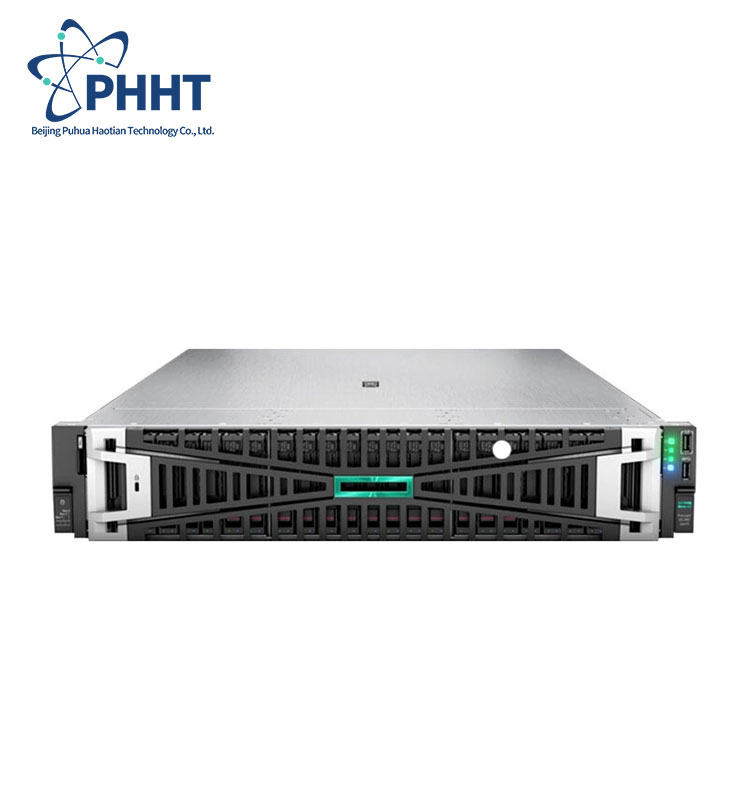

| Model | DL380 Gen11 |
| Processor | Up to two 4th Generation Intel® Xeon® Scalable Processors. 16 to 60 core, depending on processor. 22.5 MB to 112.5 MB L3, depending on processor. 3.1 GHz maximum, depending on processor. |
| Memory | 32DDR5 slots, 8 TB with 256 GB DDR5, HPE DDR5 SmartMemory, RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC). Intel Optane Persistent Memory. |
| Storage controllers | HPE SR932i-p and/or HPE MR216i-o and/or HPE MR416i-o and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE MR408i-o, for detailed descriptions reference the QuickSpecs. |
| Drive supported | 8 or 12 LFF SAS/SATA/SSD 8, 16, or 24 SFF SAS/SATA/SSD, depending on configuration. 6 SFF rear drive optional or 2 SFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model. |
| Infrastructure management | HPE iLO Standard with intelligent provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, HPE OneView Advanced (optional, requires licenses), and HPE GreenLake COM. |
| DIMM capacity | 16 GB to 256 GB |
| Power Supply | 800W, 1000W, or 1600W Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies, depending on model. |
| System fan features | Hot-plug redundant fans, Standard Fan Kit or High Performance Fan Kit, depending on model. |
| Warranty | 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of onsite support coverage. Additional information regarding worldwide limited warranty and technical support is available. Additional support and service coverage, to supplement the product warranty, is available. |
