| Form factor |

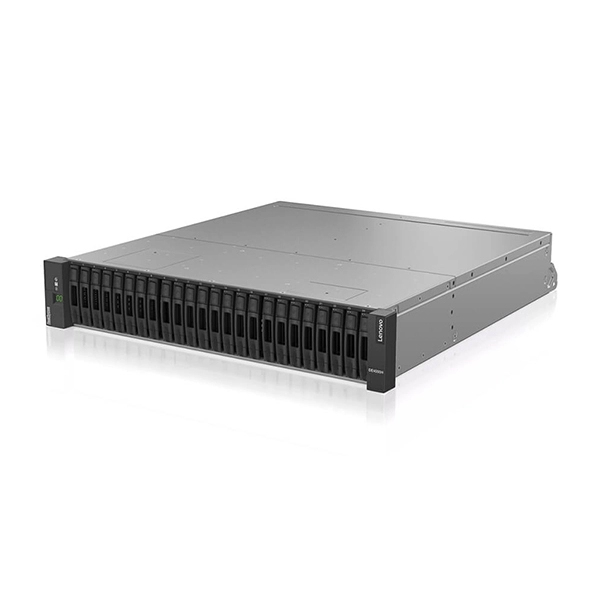

• DE6000H 2U24 SFF controller enclosure: 2U rack mount. • DE6000H 4U60 LFF controller enclosure: 4U rack mount. • DE240S 2U24 SFF expansion enclosure: 2U rack mount. • DE120S 2U12 LFF expansion enclosure: 2U rack mount. • DE600S 4U60 LFF expansion enclosure: 4U rack mount. |
| Controller configuration | Dual active-active controller configuration with automatic load balancing. |
| RAID levels | RAID 0, 1, 3, 5, 6, and 10; Dynamic Disk Pools. Note: RAID 3 can be configured only through the CLI. |
| Controller system memory | 32 GB or 128 GB per system (16 GB or 64 GB per controller). Cache mirroring between the controllers. Flash-backed cache protection (includes battery for destaging to flash). |
| Expansion enclosure support |
• DE6000H 2U24 SFF controller: 7x DE120S, 7x DE240S or 7x DE600S* • DE6000H 4U60 LFF controller: 7x DE120S, 7x DE240S or 7x DE600S* • Expansion enclosures may be mixed up to a maximum of 7 expansion enclosures |
| Drives |
2U24 SFF drives: 10K rpm SAS HDDs, SAS SSDs (1 DWD/3 DWD), FIPS options. 2U12 LFF drives: 7.2K rpm NL SAS HDDs, SAS SSDs (3 DWD), FIPS options. 4U60 LFF drives: 7.2K rpm NL SAS HDDs, SAS SSDs (3 DWD), FIPS options. |
| Storage capacity |
• Base configuration (DE6000H 4U60 + 3x DE600S): 4.2 PB (240x 18 TB SAS HDDs). • FoD upgrade (DE6000H 4U60 + 7x DE600S): 8.4 PB (480x 18 TB SAS HDDs). |
| Host operating systems | Microsoft Windows Server; Red Hat Enterprise Linux (RHEL); SUSE Linux Enterprise Server (SLES); VMware vSphere. |
| Standard software | Dynamic Disk Pools, SSD read cache, snapshots (up to 1024 targets), volume copy, thin provisioning (DDP only), encryption, and data assurance. |
| Optional software | Snapshots (up to 2048 targets), scalability to 480 drives, synchronous mirroring, and asynchronous mirroring. |
