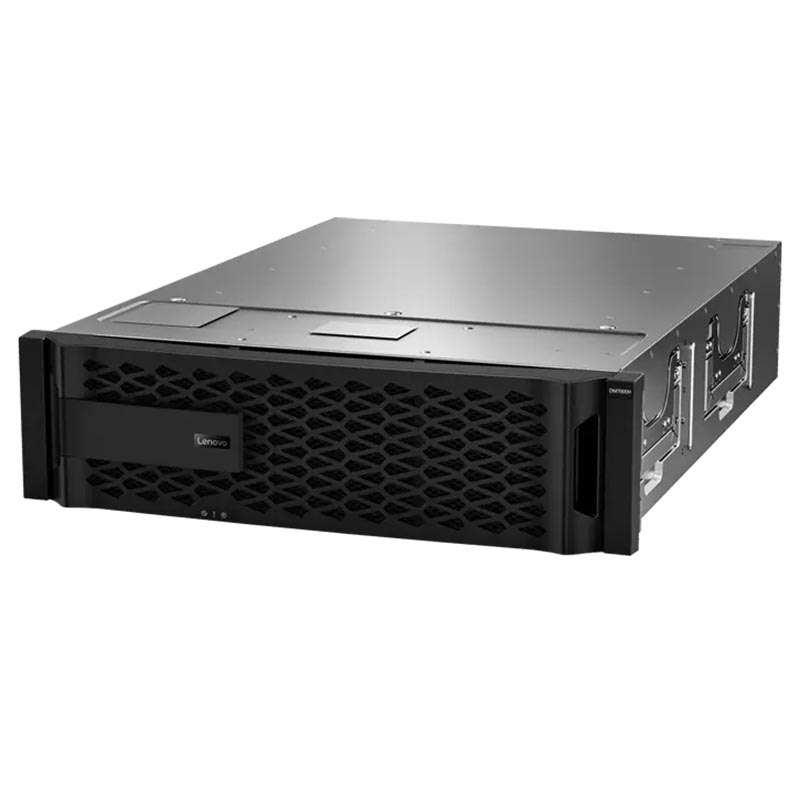

ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
1 / 5
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage
ThinkSystem DM5000Hportable nas network storage Networking Storage

ThinkSystem DM5000Hportable nas network storage Networking Storage

Send Inquiry

Product Description

Specification
Form Factor

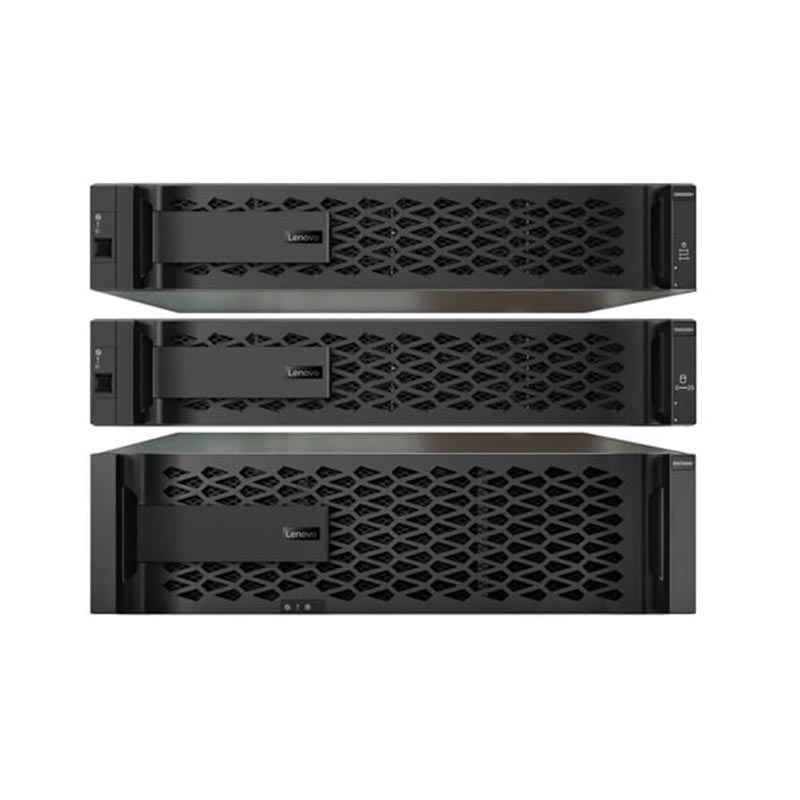

  • DM5000H controller enclosure (7Y57, 7D7V): 2U rack mount.
  • DM120S 2U12 LFF expansion enclosure (7Y59, 7D7X): 2U rack mount.
  • DM240S 2U24 SFF expansion enclosure (7Y58, 7D7Y): 2U rack mount.
  • DM600S 4U60 LFF expansion enclosure (7Y43, 7D7Z): 4U rack mount.
Controller Configuration Dual active-active controller configuration (HA pair). Up to 6 HA pairs can be combined into a single SAN cluster, or up to 12 HA pairs can be combined into a single NAS cluster. (Note: The ONTAP Fundamentals software does not support clustering.)
RAID Levels RAID-4, RAID-DP, RAID-TEC.
Controller System Memory 64 GB RAM per system (32 GB per controller). 8 GB battery-backed NVRAM per system (4 GB per controller) mirrored between the controllers.
Controller Cache 2 TB NVMe-based Flash Cache (1 TB per controller).
Drive Bays
  • Up to 144 SFF hot-swap drive bays (1x 2U24 controller + 5x 2U24 expansion).
  • Up to 120 LFF and 24 SFF hot-swap drive bays (1x 2U24 controller + 2x 4U60 or 9x 2U12 expansion).
  • Intermix of 2U24 SFF, 2U12 LFF, and 4U60 LFF enclosures supported.
Drive Technology 12 Gb SAS HDDs, 12 Gb NL SAS HDDs, 12 Gb SAS SSDs.
Drive Expansion Connectivity
  • 2x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each controller.
  • 4x 12 Gb SAS x4 (Mini-SAS HD SFF-8644) expansion ports on each I/O module in expansion enclosures.
Host Operating Systems Microsoft Windows Server 2012 R2, 2016, 2019; RHEL 6, 7, 8; SLES 11, 12, 15; VMware vSphere 6.0, 6.5, 6.7, 7.0.
Dimensions Controller: 85mm (H) x 447mm (W) x 483mm (D)
2U24 SFF: 85mm (H) x 449mm (W) x 484mm (D)
2U12 LFF: 85mm (H) x 447mm (W) x 483mm (D)
4U60 LFF: 174mm (H) x 449mm (W) x 922mm (D)
Product Description

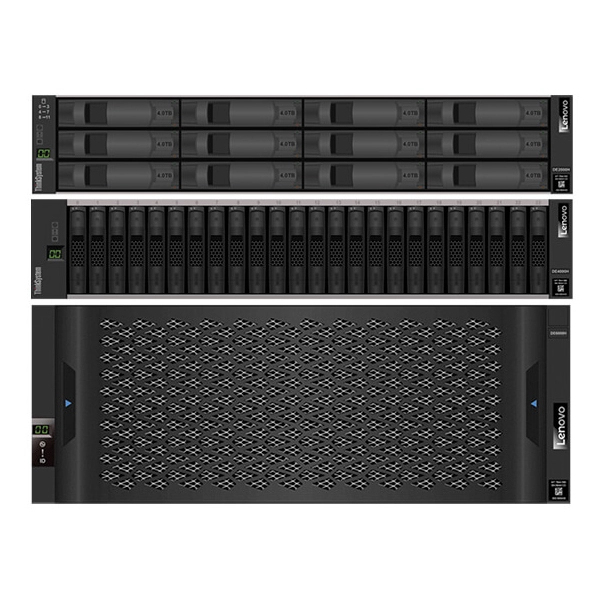

Product Display
Product Features & Details
Frequently Asked Questions
When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. For urgent requests, please inform us via communication channels to prioritize your inquiry.
What are the advantages of choosing your products?
Our whole machine products provide a 3-year replacement warranty. We use original brand chips and perform strict testing before each delivery to ensure top quality.
What is the Minimum Order Quantity (MOQ) for OEM orders?
MOQ varies depending on the product type. Please share your specific requirements, and we will do our best to accommodate both small and large orders.
How does your pricing compare to local market prices?
We focus on long-term business through high quality. While outward appearances may be similar, our internal components and testing standards ensure superior performance and longevity.
Which operating systems are compatible with this storage system?
It supports a wide range of systems including Microsoft Windows Server (2012 R2 to 2019), Red Hat Enterprise Linux (6, 7, 8), SUSE Linux Enterprise Server, and VMware vSphere (6.0 to 7.0).
What storage expansion options are available?
The system is highly scalable, supporting up to 144 SFF drive bays or up to 120 LFF and 24 SFF bays through various expansion enclosure combinations.
