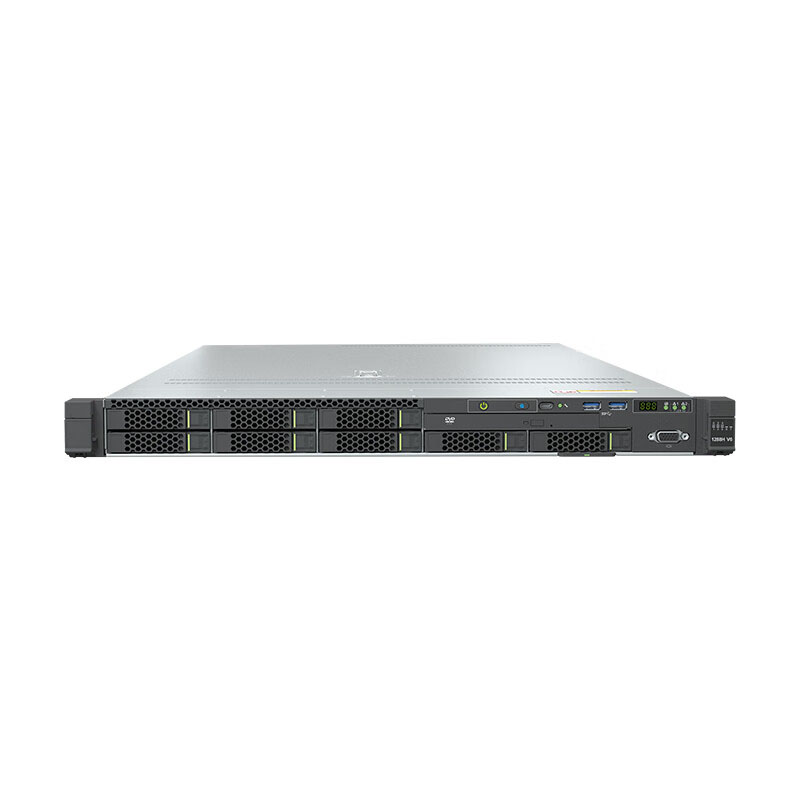

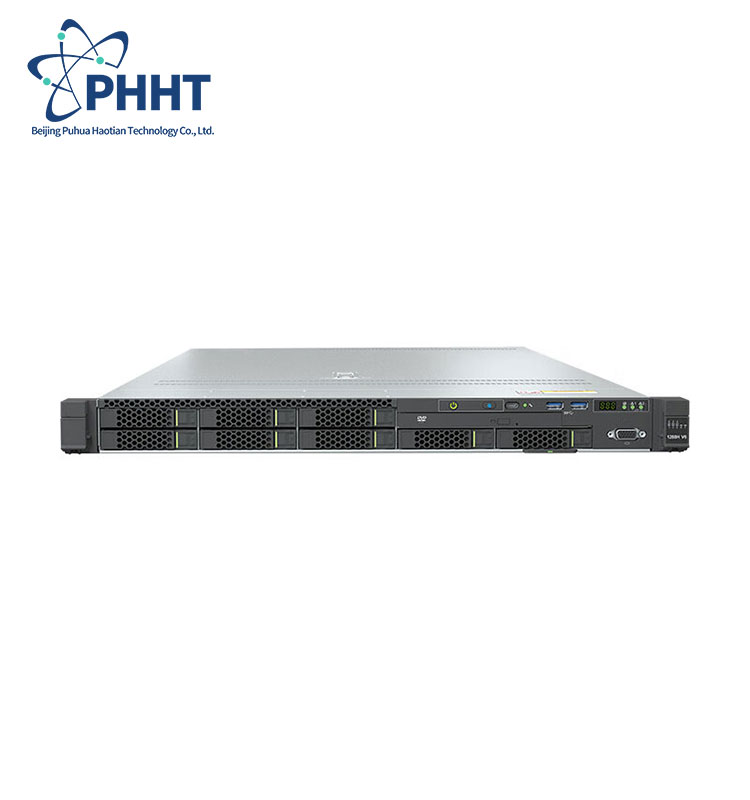

| Model | Xfusuion Server 1288H V6 |
| Form Factor | 1U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Memory | 32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s |
| Local Storage | Supports various drive configurations and hot swappable: • 8 to 12 x 2.5-inch SAS/SATA/SSD drives • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives, with a total number of 10 or less) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives, with a total number of 10 or less) • 4 x 3.5-inch SAS/SATA/SSD drives Supports flash storage: • Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network | Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots support two OCP 3.0 network adapter respectively, which can be configured as required. Supports the hot swap function. |
| PCIe Expansion | Provides six PCIe slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards. |
| Fan Modules | Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Power Supply | Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs 1000 W (input: 100 V to 127 V AC) 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC) • 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Dimensions (H x W x D) | Chassis with 3.5-inch drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.) Chassis with 2.5-inch drives: 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.) |
