Nexus AI Server
1 / 5

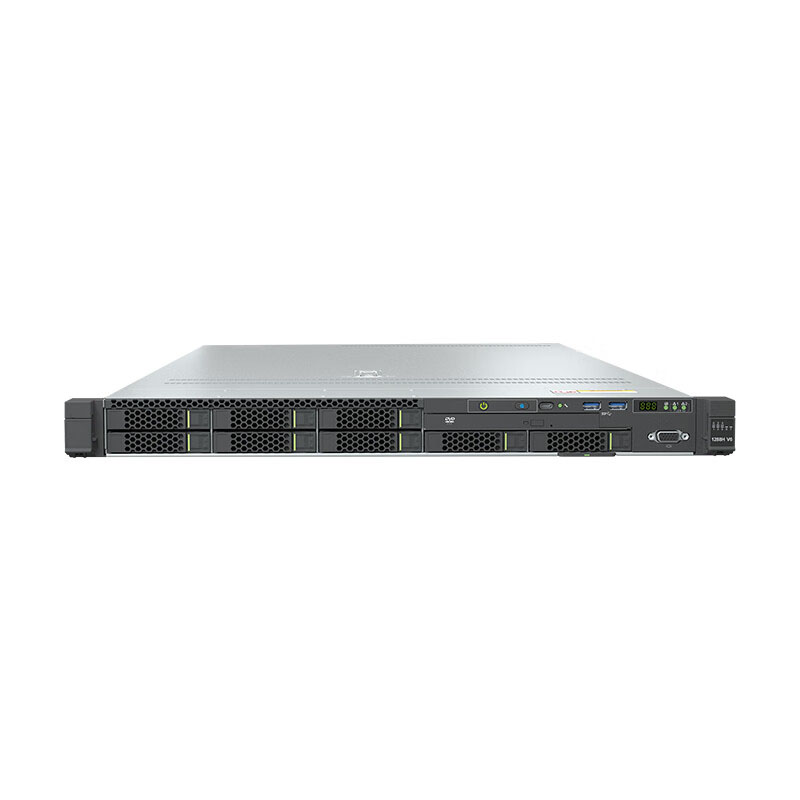

| Model | Xfusuion Server 1288H V6 |
| Form Factor | 1U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), thermal design power (TDP) up to 270 W |
| Memory | 32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s |
| Local Storage |
Supports various drive configurations and hot swappable: • 8 to 12 x 2.5-inch SAS/SATA/SSD drives • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA drives) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA drives) • 4 x 3.5-inch SAS/SATA/SSD drives • Dual M.2 SSDs |
| RAID Support | Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |

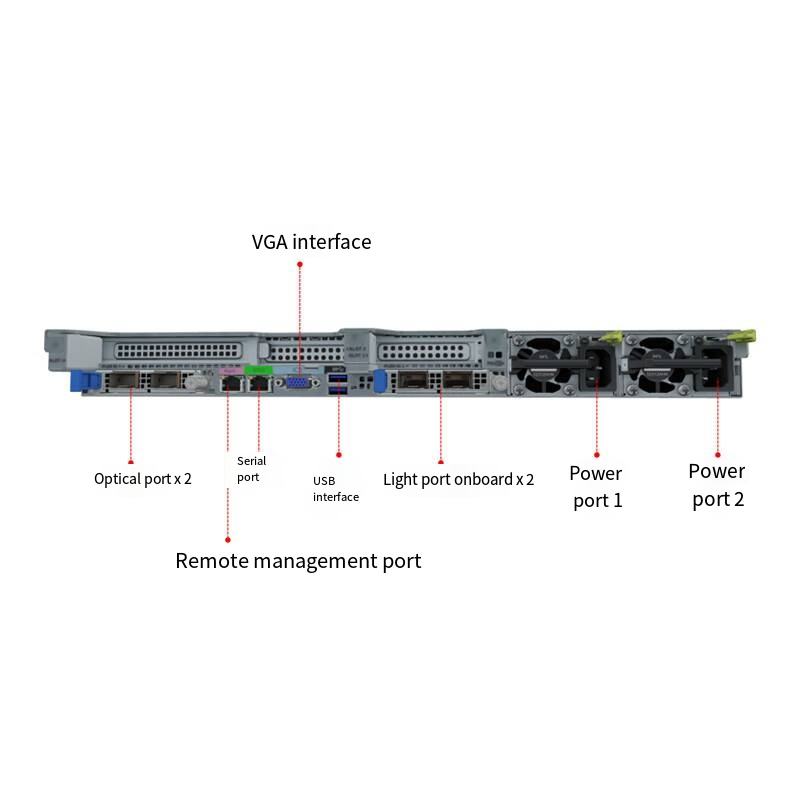

| Network | Provides expansion capability of multiple types of networks. OCP 3.0 network adapter support. Two FlexIO card slots support two OCP 3.0 network adapters respectively. Supports hot swap. |
| PCIe Expansion | Provides six PCIe slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots dedicated for OCP 3.0 network adapters, and three PCIe 4.0 slots for standard PCIe cards. |
| Fan Modules | Seven hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Power Supply |
Two hot-swappable PSUs in 1+1 redundancy mode: • 900 W AC Platinum/Titanium PSUs • 1500 W AC Platinum PSUs • 1500 W 380 V HVDC PSUs • 1200 W –48 V to –60 V DC PSUs • 2000 W AC Platinum PSUs |

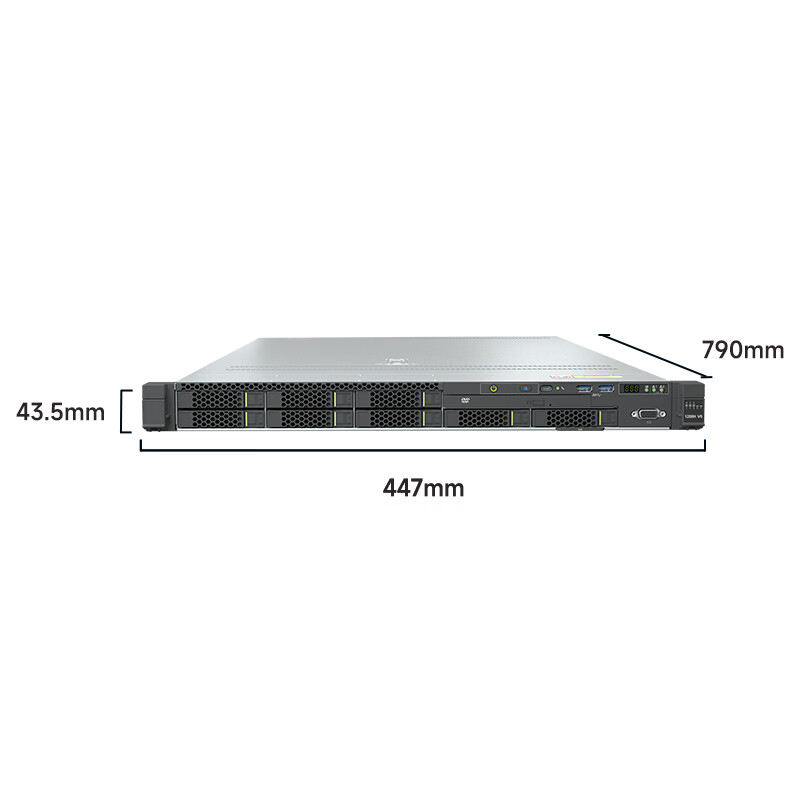

| Dimensions | 43.5 mm x 447 mm x 790 mm (1.71 in. x 17.60 in. x 31.10 in.) for both 2.5-inch and 3.5-inch drive chassis. |
